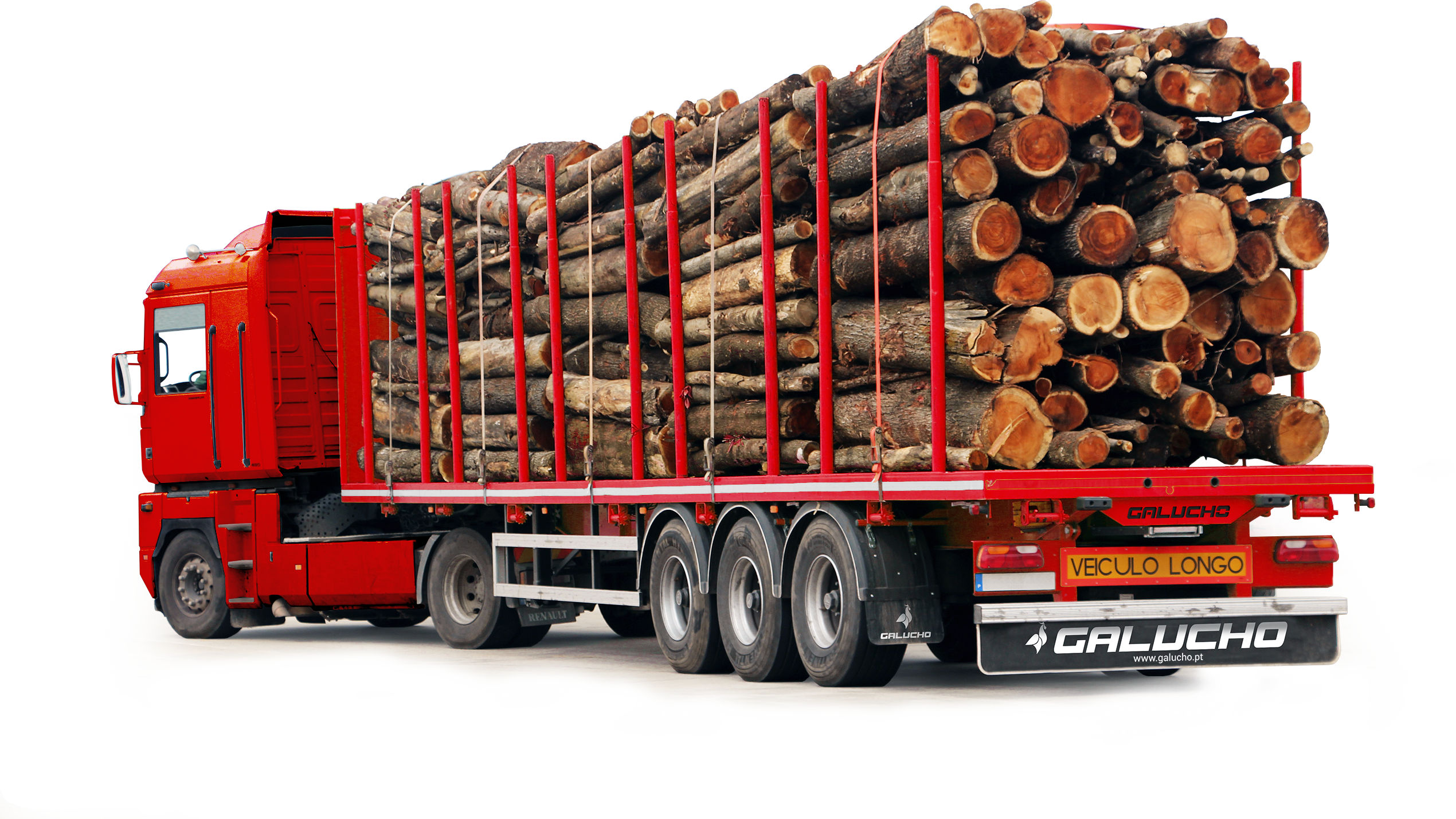

SGE3M - 3 Axle Wood Carrier Platform Semitrailer

Novidade

REF: b51aa52377a8


Hight tensile strength steel chassis

  • Mechano-welded stringers, joined by crosspieces;
  • 2” King pin dismountable;
  • Side underrun protections in aluminum;
  • Mudguards in PVC with anti-spray protection;
  • Retractable ladder to the rear;
  • Fixed bumper.

Rolling Equipment

  • Pneumatic suspension with raise/descending;
  • 3 Axles simple wheels 12 ton (BPW brand);
  • First axle with manual lift;
  • Disc brakes with Ø 430 mm;
  • 7 tubless wheels 445/65R22,5”.

Braking System

  • Two lines with corrective valve depending on payload;
  • Parking air brake (Maxibrake) on 2 rear axles;
  • EBS with traction control and anti-rollover (ESP + RS).

Landing Gear

  • 2 Speed telescopic with articulated support;
  • Dynamic Capacity 24 ton;
  • Static Capacity 60 ton.

Lighting and Signalling

  • Two rear lights with 9 functions;
  • Front width boundary and signal lights;
  • Rear reflector plates.

Body Equipment

  • Floor in olive leaf plate;
  • Front sidings plate and ladder.

Miscellaneous equipment

  • Double Spare wheel holder;
  • Tool box;
  • Water tank;
  • 32 fuses and 20 stanchions.

Paint Job

  • Automatic pickling via steel grit;
  • Primary anticorrosive, polyurethane 2 components.
  • Two-component acrylic enamel finish.


  • 2nd spare wheel support;
  • Wheel chock (unit);
  • Dismountable 3 1/2″ king pin;
  • Load gauge;
  • Odometer;
  • 9 side windings (5 + 4), rope hook and ratchet wrench;
  • 2 windings at the rear;
  • Mesh basket on the left side;
  • 2nd metallic tool box;
  • Stainless tool box (unit);
  • C5 painting.
  • Smart Board;
  • 2nd Lift axle;
  • Basket for accessories on the left side;
  • 2nd metal toolbox on the right side;
  • Stainless stell toolbox (replacing the metallic one) (unit);
  • Fire extinguisher box;
  • Additional stanchion (unit);
  • Windlasses (unit).
