REF: 295430000

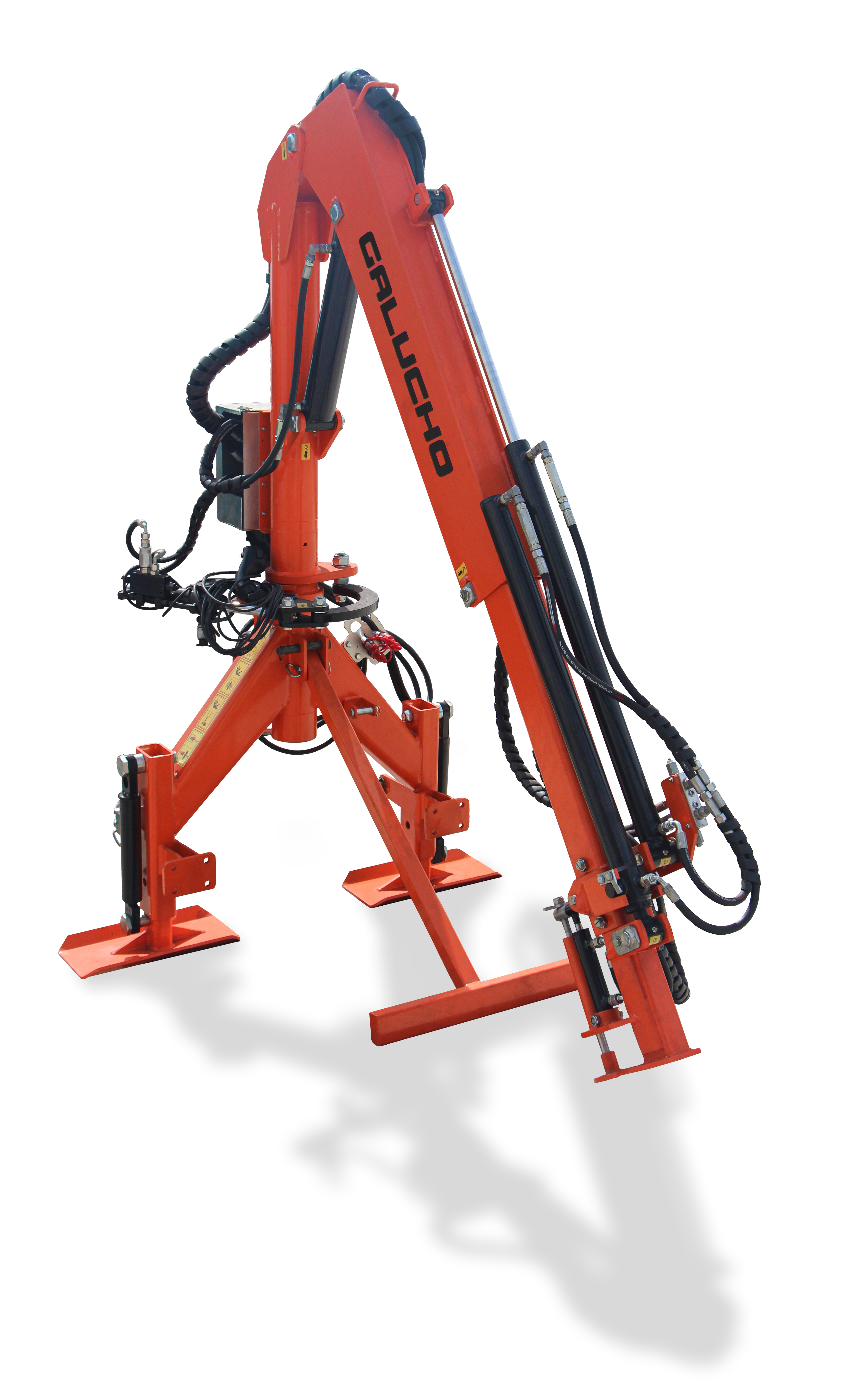

The Hydraulic Rotating Telescopic Crane is fully hydraulic, has 180º rotation and a configuration that makes it possible to switch between tractor and trailer.
The GRH Azeitona model is designed for loading olives from the ground using blankets or sacks and unloading onto a trailer.
Chassis:
- Quick and easy 3-point assembly;
- Can be interchanged between tractor and trailer;
- Articulation with a 30mm diameter bushing and axle, ensuring high joint strength;
- Fully hydraulic;
- Left/right rotation ± 90º.
Lift:
- 3 double-acting hydraulic cylinders with arm extension up to 3.5m;
- Maximum lifting capacity: 1300Kg;
- Maximum ground height: 5m;
- Anti-drop valve mounted on the lifting cylinder;
- Boom tip with hook and 60cm chain on GRH model;
- Boom tip with double hook and manual and hydraulic latch MODEL GRH - Olive.
Option:
- Hydraulic kit with solenoid valve + remote control;
- Hydraulic kit with solenoid valve + radio;
- Hydraulic kit with solenoid valve;
- Hydraulic Shoe Kit;
- Fertilizer kit.
Main advantages:
- Fully hydraulic;
- Greater angle of rotation - 180º (left/right rotation ± 90º);
- Possibility of installing wired or wireless controls.
